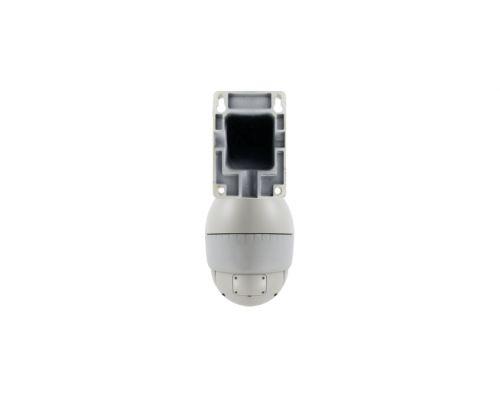

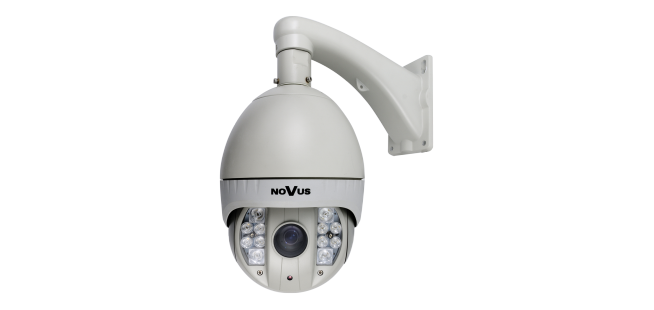

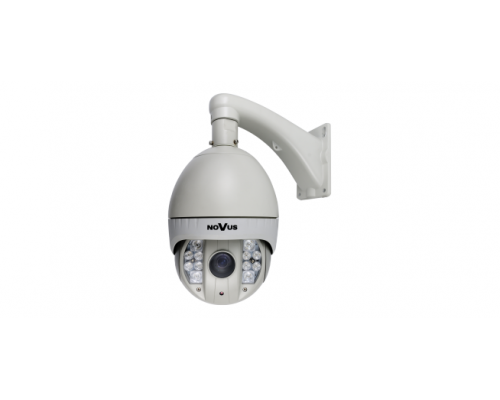

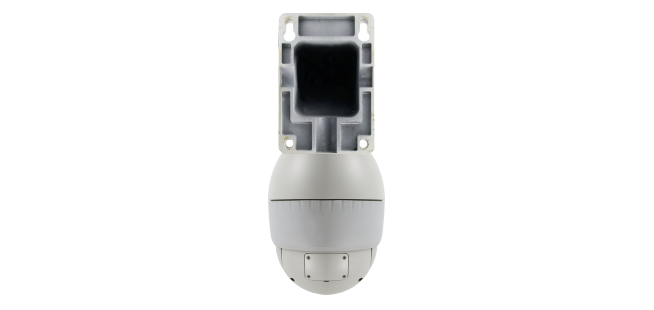

Camera video IP 2.0 Megapixel Speed-dome NVIP-2DN5022SD/IRH-2
Cererea de oferta a fost trimisa cu succes!
Livrare 24h
Livrarea se face la adresa specificată de client, de regulă în 24 de ore de la expedierea Comenzii şi poate ajunge la maxim 48 de ore pentru livrarea în zone rurale.
Suport tehnic
Prin suportul tehnic oferit de catre firma noastra puteti instala /mentine sistemele dumneavoastra in perfecta stare de functionare
Retur bani 30 zile
Garanţie retur extinsă pentru 30 de zile.
Garanție 2 ani
Garantia produsului
- Specificații tehnice
- Caracteristici
- Catalog
- Review
Cameră video IP 2.0 Megapixel de tip Speed-dome NVIP-2DN5022SD/IRH-2 cu un senzor de imagine 1/2.8” CMOS si o lentilă Motor-zoom 22x, AI and AF function: f=4.7 ~ 103 mm (F1.6 ~ F3.5); 55.4° ~ 2.9° Are 12 LEDuri IR (100 m); Variaza in functie de zoom pana la 45°, iluminare minimă: 0.26 lx; AES, DSS, AGC, AWB, BLC, WDR, DNR, F-DNR; rezoluție maxima FullHD; compresie video H.264/M-JPEG; 8 tururi (max 64 presetari pentru fiecare); 4 funcții autoscan; 8 seturi de comenzi (max. 206 s); 256 comenzi presetate, până la 25 ips in toate rezolutiile; max. 10 conectări simultane. Aceasta camera poate transmite concomitent 2 fluxuri video cu parametri definiți individual, intrare/ieșire audio: 1/1 RCA; intrare / ieșire alarmă: 7 (NO/NC) / 2 releu; micro SD card, înregistrări pre/post-alarmă: 20/20s; detecție la mișcare hardware. In caz de alarmă transmite mesaje text, imagini sau flux video către email, FTP sau card;alimentare: 24 VAC; temperatură de funcționare (-40;+50) grade Celsius; IP66.
Caracteristici:
| Image Sensor |
2 MPX CMOS sensor 1/2.8” SONY Exmor |
| Number of Effective Pixels |
1920 (H) x 1080 (V) |
| Min. Illumination |
0.26 lx/F1.6 - color mode (1/50 s), 0.005 lx/F1.6 - B/W mode (1/50 s), 0 lx (IR on) - B/W mode |
| S/N Ratio |
> 50 dB (AGC off) |
| Electronic Shutter |
auto/manual: 1/25 s ~ 1/10000 s |
| Wide Dynamic Range (WDR) |
yes |
| Digital Noise Reduction (DNR) |
2D |
| Defog Function (F-DNR) |
yes |
| Lens | |
|---|---|
| Optical Zoom |
22x |
| Lens Type |
motor-zoom varifocal, AI and AF function, f=4.7 ~ 103 mm/F1.6 ~ 3.5 |
| Angle of View (H) |
55.4° ~ 2.9° |
| Day/Night | |
| Switching Type |
mechanical IR cut filter |
| Switching Mode |
auto, manual |
| Switching Schedule |
yes |
| Visible Light Sensor |
yes |
| Network | |
| Stream Resolution |
1920 x 1080 (Full HD), 720 x 576 (D1), 640 x 480 (VGA), 640 x 360, 352 x 288 (CIF), 320 x 240 (QVGA) |
| Frame Rate |
30 fps for each resolution |
| Multistreaming Mode |
2 streams |
| Video/Audio Compression |
H.264, MJPEG/G.711, RAW_PCM |
| Number of Simultaneous Connections |
max. 10 |
| Bandwidth |
18 Mb/s in total |
| Network Protocols Support |
HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP |
| ONVIF Protocol Support |
Profile S (ONVIF2.2) |
| Camera Configuration |
from Internet Explorer browser languages: Polish, English, Russian, and others |
| Compatible Software |
NMS |
| PTZ | |
| Preset Commands |
246 |
| Tours |
12 (up to 32 presets per tour) |
| Auto-Scans |
12 |
| Patterns |
6 (max. 1000 commands or 300 s for each pattern) |
| Tilt/Pan Range |
0° ~ 93°/360° (continuous) |
| Pan/Tilt Speed |
up to 150°/s (proportional to zoom) |
| Preset Speed |
up to 150°/s |
| Protocols |
Pelco-D, Pelco-P |
| Other functions | |
| Privacy Zones |
8 |
| Image Processing |
180˚ image rotation, sharpening, mirror effect |
| Prealarm/Postalarm |
up to 5 MB/up to 86400 s |
| System Reaction to Alarm Events |
e-mail with attachment, saving file on FTP server, saving file on SD card, saving file on NAS server, alarm output activation, HTTP notification, PTZ |
| IR LED | |
| LED Number |
12 |
| Range |
up to 100 m (depends on current optical zoom value) |
| Angle |
up to 45° (depends on current optical zoom value) |
| Interfaces | |
| Video Output |
BNC, 1.0 Vp-p, 75 Ohm - maintenance only |
| Audio Input/Output |
1 x RCA/1 x RCA |
| Alarm Input/Output |
7 (NO/NC)/2 relay type |
| Network Interface |
1 x Ethernet - RJ-45 interface, 10/100 Mbit/s |
| Memory Card Slot |
microSD |
| Installation parameters | |
| Dimensions (mm) |
220 (Ф) x 310 (H) with bracket: 220 (W) x 368 (H) x 388 (L) |
| Weight |
4.3 kg with bracket: 5.5 kg |
| Enclosure |

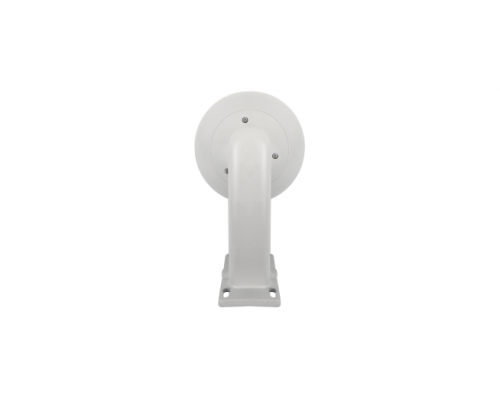

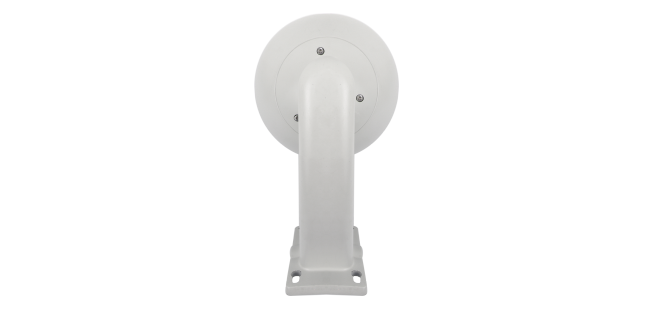

aluminium, white, in-set included: outdoor housing (integrated with the camera), wall mount bracket |
| Power Supply |
24 VAC |
| Power Consumption |
45 W, 50 W (heater on) |
| Operating temperature with housing |
-40°C ~ 60°C |
| Built-in Heater/Fan |
yes/yes |
| Degree of Protection |
IP 66 |
